BFT ELI AC A40 Swing Gate Motor in UAE

BFT Swing Gate Motor in UAE

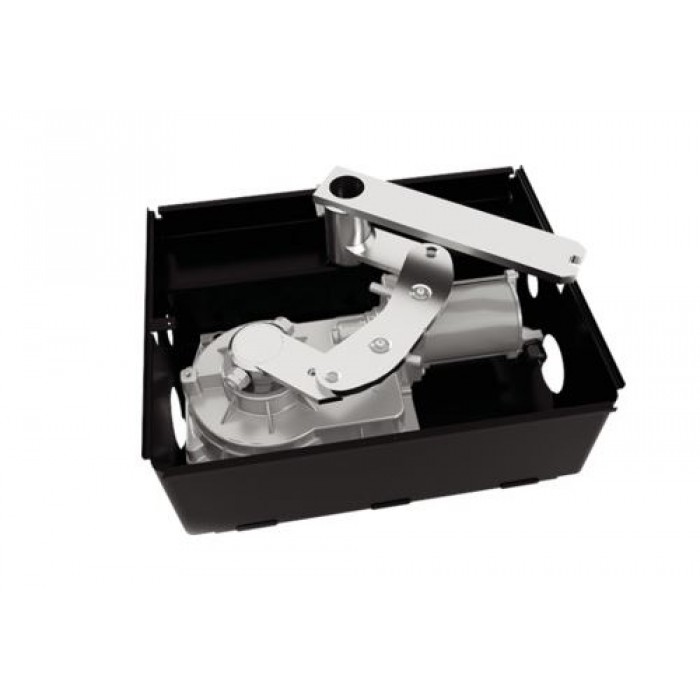

BFT ELI AC A40

BFT ELI A40 Underground Swing Gate Motor in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

Technical data sheets:
Release : Lever or lever with personalised key
Protection rating : IP67
Environmental conditions : -20 ÷ 55 °C
Interconnectivity : no
Motor voltage : 230 V
Max. width of door/gate wing : 4 m
Maximum angle : 120 °
Impact reaction : Electronic clutch (with control panel)
Compatible control unit : RIGEL6, ALENA SW2
Max. length gate panel without electric lock : 2.5 m
Max. motor torque : 350 Nm
Max. opening cycles per hour : 20
Speed : 1.45 Rpm
Opening time to 90° : 13" (no slowdown)
Limit switch standard : N/A
Limit switch optional : Magnetic
Mechanical stops : OP+CL

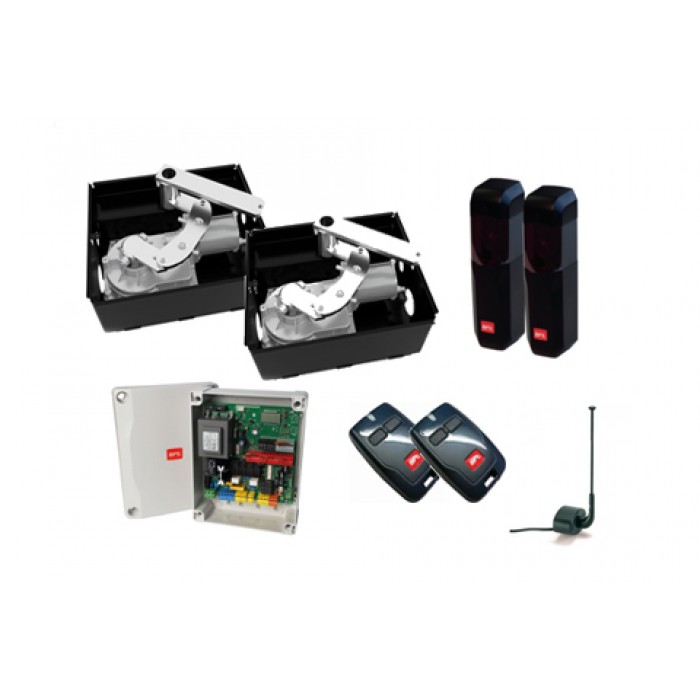

ELI AC A40 Swing Gate Motor Kit Includes:
2 x BFELI AC A40 Underground Swing Gate Motor.
1 x Control Board.
1 x Pair of self-aligning photocells. Range 30 m.
1 x Flashing light with incorporated antenna.
2 x Remote Control Range 50/100 m.
1 x Push button.
2 x Fixing Brackets.
2 x Wall Brackets
