Universal Photocell Sensor in UAE

Safety Universal Photocell Sensors in UAE

Automatic Gate Universal Sensor supplier in Dubai, Sharjah, Ajman, Abu Dhabi UAE.

Product Description:

High Quality, need connect with alarm system as it can’t work alone

Can work with access control system, security alarm system, Automatic

Gate Control System and so on

Professional anti-interference optical cover, unique digital filter

Circuit desi Anti-glare up to 50,000LUX, built-in automatic adjustment

Of light filter system, to avoid the impact of light or car lights,

All-weather sealed (rain), dust (insects) and other all-weather

Integration of the structure designed to work in harsh environments

How to use:

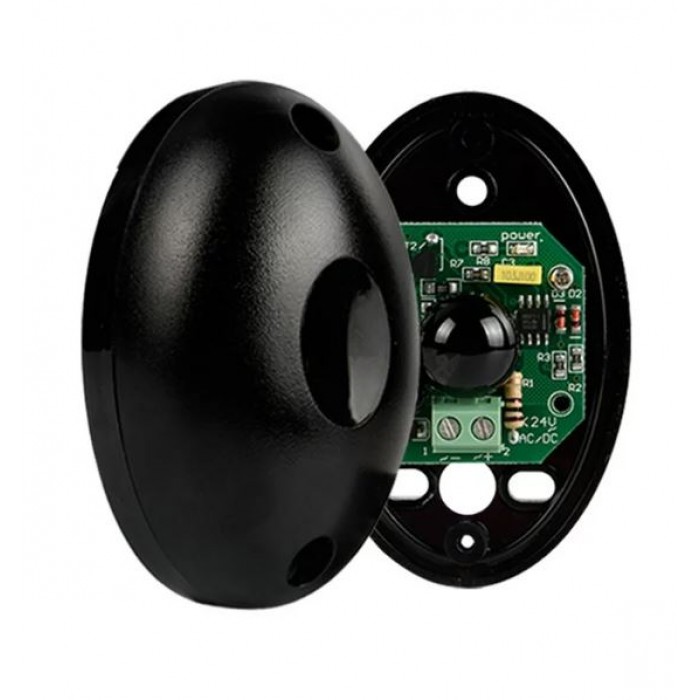

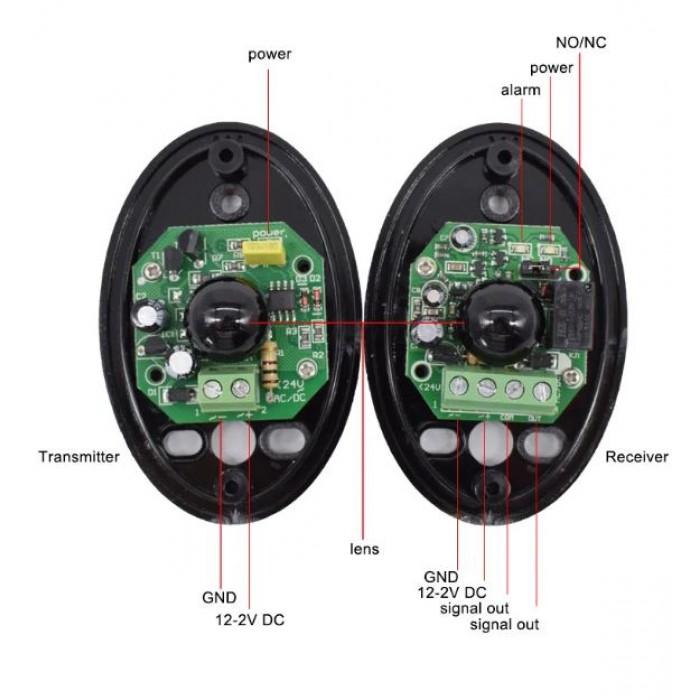

This is Active Infrared Detector. Install each pair at the opposite

Positions. Then there is a infrared area between these two detector

Parts. When someone passes the infrared region, the detector will send

Alarm signal to the security alarm host (which not included here).

Specifications:

Receiver range: less than 15m

Infra-red frequency: 1.92KHZ

Power supply: 12V DC

Wavelength: 940nm

Input: RX 15mA-TX 30mA

Size (Each One): 3″ x 1.9″ x 1.2″ (L*W*H)

Operating temperature: -20-70 C

Relay output: 1A max 30V

Net weight: 120g

Package content:

1 x Infrared sensor (transmitter & receiver)

1 x Some Mounting screws

1 x English Usage Manual
