BFT DEIMOS 500 KG Sliding Gate Motor in UAE

BFT Sliding Gate Motor in UAE

BFT DEIMOS 500 KG

BFT Sliding Gate Motor Supplier in Dubai, Sharjah, Abu Dhabi, and all over UAE.

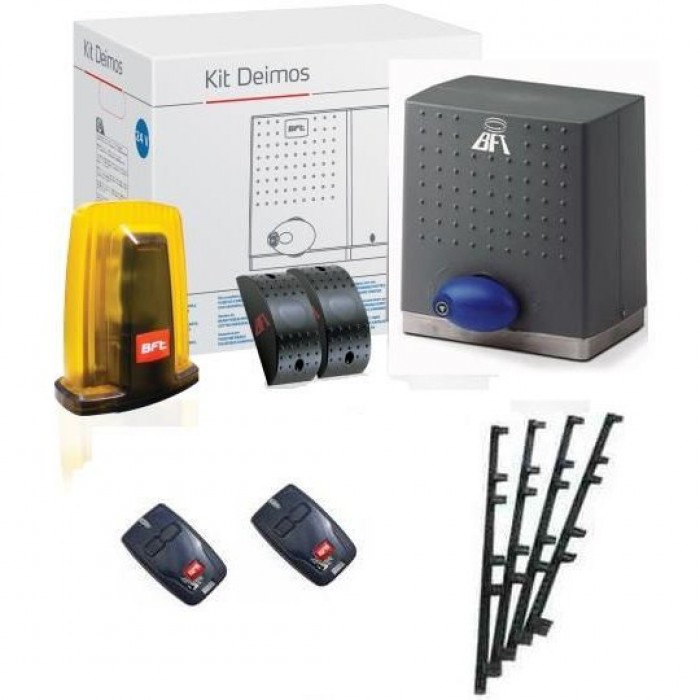

BFT DEIMOS 500 BT 24V automatic opening kit for sliding gates up to 500.

SMART TECHNOLOGY
Electromechanical microswitches that control the end stroke (inductive on the prox version)
Incorporated a two-channel rolling code radio receiver
Control unit with self-learning and self-diagnostic functions
Control unit compatible with the EElink protocol
SAFE USE
The version powered at 24V has been specially designed for simpler and faster installation in compliance with the safety standards laid down by the Machinery Directive
Thanks to the anti-squashing system, the operator inverts motion and prevents damage to people and property in the event of contact (BT version)
SIMPLER INSTALLATION
Incorporated control unit positioned frontally for easier accessibility
Control unit with programming by LCD display (BT version)
Technical features:
Control board: QSC D MA (incorporated)
Reversible/irreversible operator: irreversible
Power supply: 230 Vac ±10%, 50 Hz single-phase
Motor power supply: 24 Vdc
Absorbed power: 70 W
Thermal protection: 120°C, integrated
Leaf speed: 12 m/min
Output revolutions: 79 min
Pinion pitch: 4 (14 teeth)
Impact reaction: electronic torque limiter
Type of limit switches: electromechanical or inductive
Manual release: mechanical release with knob
Operating cycle: intensive use
Environmental conditions: -20°C +50°C
Degree of protection: IP24
Maximum leaf weight: 500 kg
Maximum length of gate leaf: 6 m
Maximum torque: 20 Nm
Operator weight: 70 N (~7 kg)
