BFT PHOBOS AC A50 Swing Gate Motor in UAE

BFT Swing Gate Motor in UAE

BFT PHOBOS AC A50

BFT PHOBOS AC A50 Swing Gate Motor in Dubai, Sharjah, Abu Dhabi UAE.

• Gate Weight : 500 Kg
• Gate Leaf : 5 meter long
• Made in Italy
• PHOBOS AC A50
• Product code P935097 00002
• Irreversible electromechanical operator 230 V for swing gates weighing up to 500 kg and 5 m long.

Technical Data Sheets:

• Cycle time  : 18 s
• Interconnectivity : no
• Control unit : RIGEL 6. ALENA SW2
• Type of limit switch : work time
• Board power supply : 230 V
• Slowdown  : Yes
• Motor voltage : 230 V
• Locking : Mechanical
• Power consumption : 210 W
• Release : Personal key
• Max. width of door/gate wing : 5 m
• Impact reaction : Electronic clutch
• Max. weight of door/gate wing : 500 kg
• Frequency of use : Semi intensive
• Useful rod stroke : 460 mm
• Protection rating : IPX4
• Maximum angle : 129 °
• Environmental conditions : -20 ÷ 55 °C.

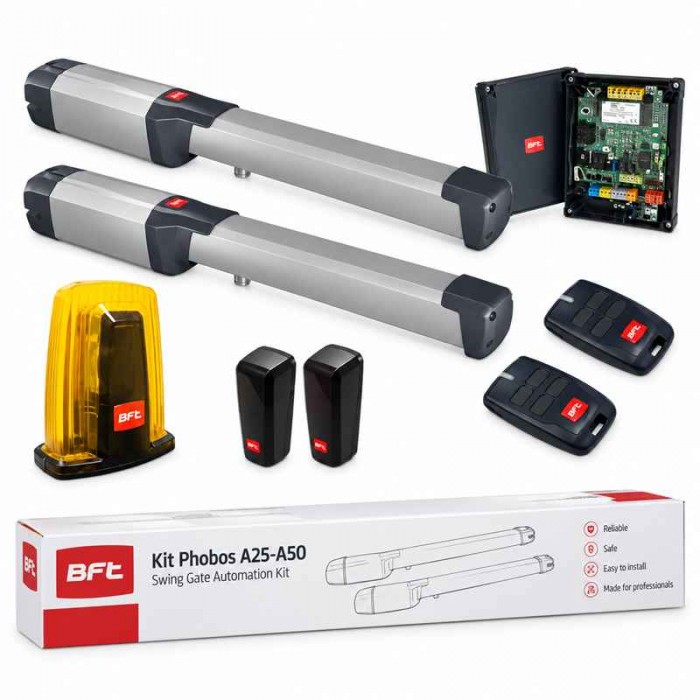

PHOBOS AC A50 kit contains:

• 2 x PHOBOS AC A50 Swing Gate Motor 230 V.
• 1 x RIGEL 6 220-230V 50/60HZ Universal control panel.
• 1 x Pair of photocells adjustable 180° horizontally. 20 metre range.
• 1 x Flashing light with incorporated antenna.
• 2 x BFT Mitto2 B RCB Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.
