BFT KUSTOS BT A25 400KG Swing Gate Motor in UAE

BFT Swing Gate Motor in UAE

BFT KUSTOS BT A25 400KG

BFT KUSTOS BT A25 Swing Gate Motor in Dubai, Sharjah, Abu Dhabi UAE.

• Gate Weight : 400 Kg
• Gate Leaf : 2.5 meter long
• Made in Italy
• KUSTOS BT A25
• Product code P935099 00002
• Irreversible electromechanical operator 24 V for swing gates weighing up to 400 kg and 2,5 m long.

Technical Data Sheets:

• Control unit : THALIA
• Board power supply : 230 V
• Motor voltage : 24 V
• Power consumption : 40 W
• Max. width of door/gate wing : 2.5 m
• Max. weight of door/gate wing : 400 kg
• Useful rod stroke : 295 mm
• Maximum angle : 118 °
• Cycle time  : 13 s
• Type of limit switch : Magnetic
• Slowdown : Yes
• Locking : Mechanical
• Release : Personal key
• Impact reaction : D-Track
• Frequency of use : intensive
• Protection rating : IP44
• Environmental conditions : -20 ÷ 55 °C
• Interconnectivity : no

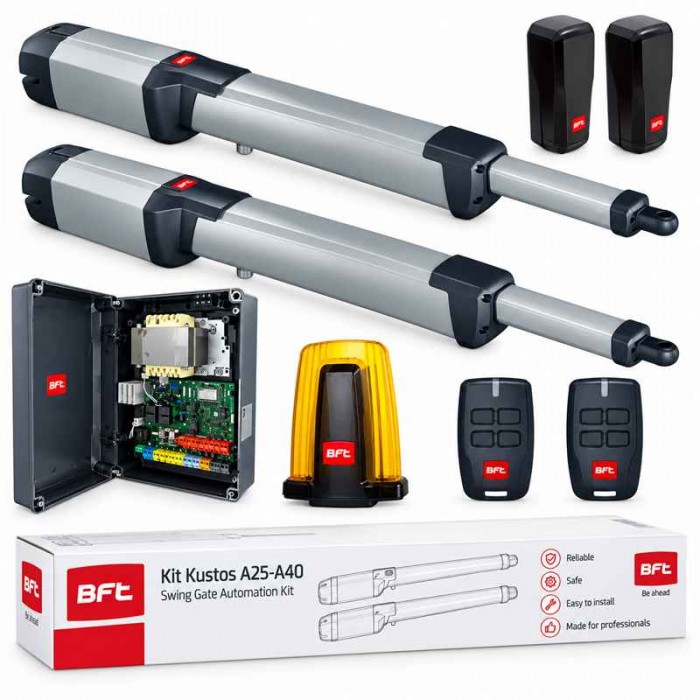

BFT KUSTOS ULTRA BT A 25 kit contains:

• 2 x KUSTOS BT A25 24 V Swing Gate Motor.
• 1 x THALIA Control panel 24V.
• 1 x Pair of self-aligning photocells. Range 30 m.
• 1 x Flashing light with incorporated antenna.
• 2 x BFT Mitto2 B RCB Remote Control.
• 1 x Push Button.
• 2 x Fixing Bracket.
